Sanding Panel & Wheel Slide Protection (WSP)
Driver Controls

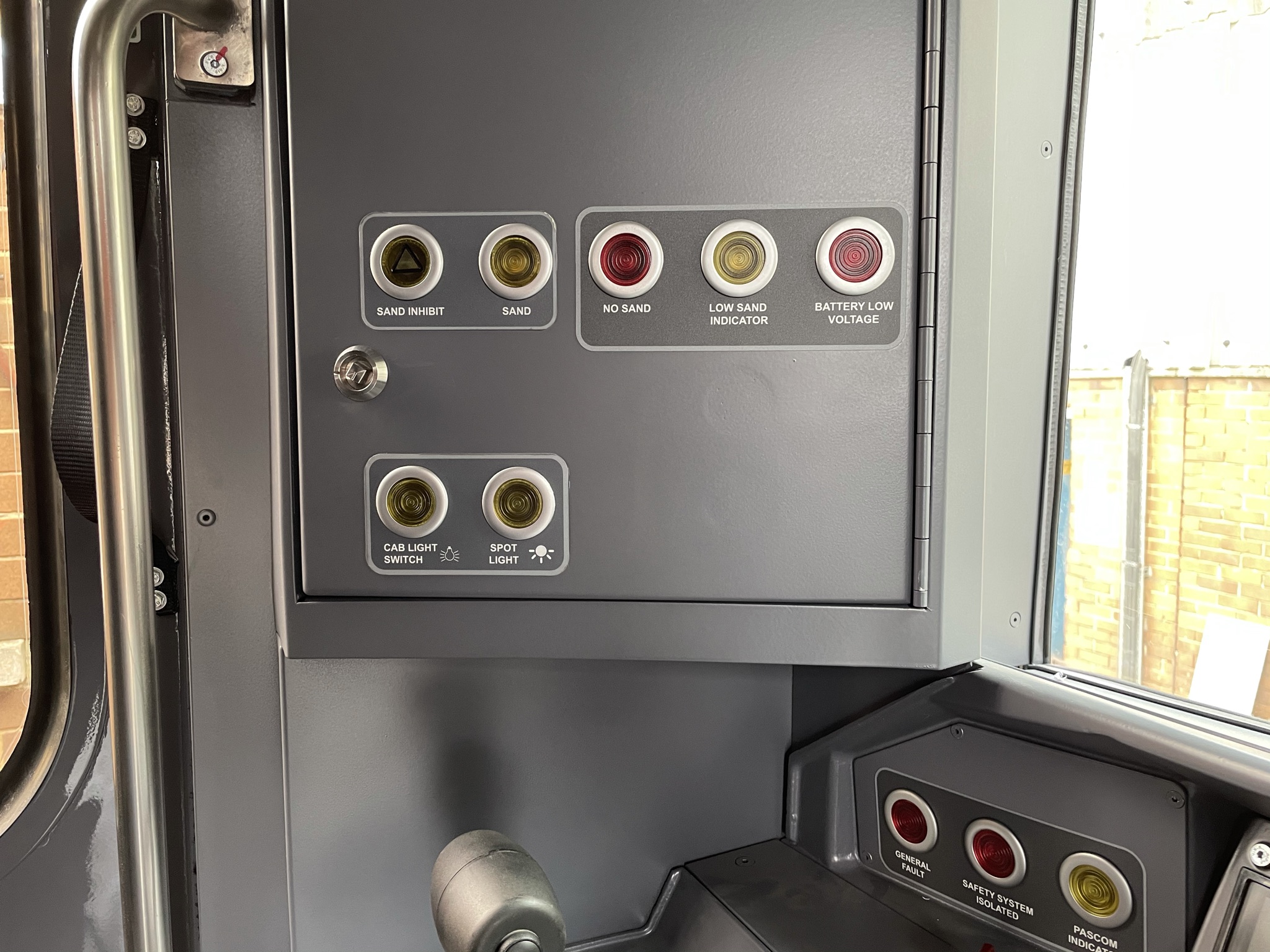

Sanding Panel
The panel containing the sanding controls is located on the Driver’s left hand side.
The buttons and functions are (from left to right)
- Sand Inhibit
- Sand (Apply Sand)
- No Sand
- Low Sand Indicator
- Battery Low Voltage
Wheel Slide Protection (WSP) & Sanding System
A modern wheel slide protection (WSP) system is fitted to the Class 484 trains:
- Automatic sanding during braking is provided in brake steps 2, 3 and Emergency when WSP is detected
- Automatic sanding in traction is provided; a 10 second blast of sand will be applied with no time delay between each application
- Automatic sanding can be stopped by pressing the ‘Sand inhibit’ button

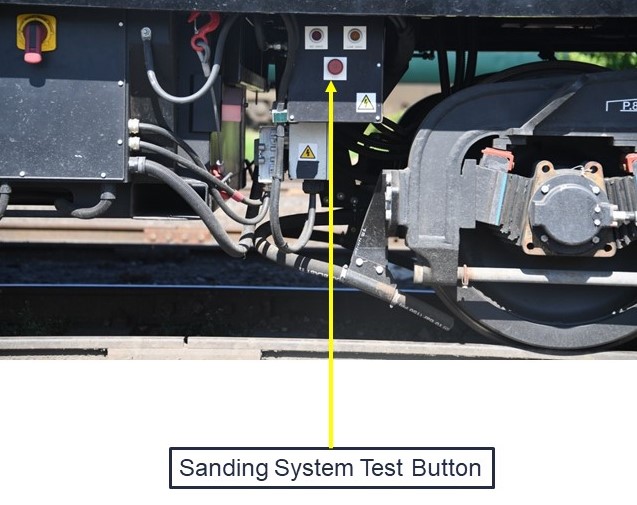

- A sanding test button is provided on each sander control box
Wheel Slide Protection (WSP) & Sanding System (cont.)
A modern wheel slide protection system is fitted to the Class 484 trains:

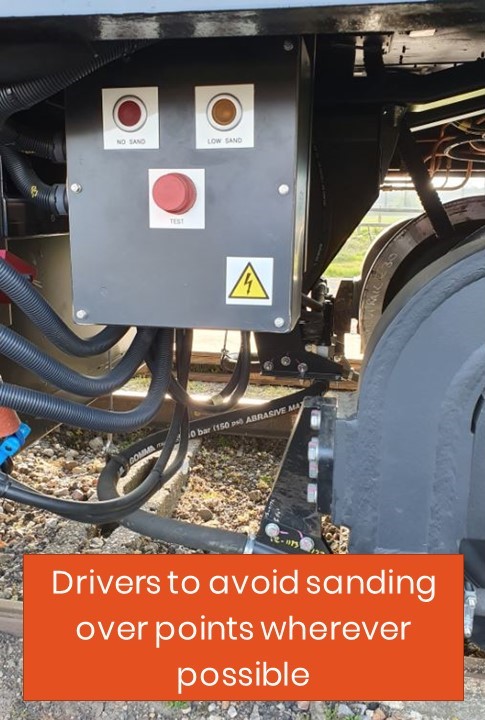

- No Sand and Low Sand Indications are provided on the sand control modules on the outside of each vehicle
Note: Low sand inhibits the sanding system in powering but allows it in braking. The system will continue to apply sand until the tank is empty.
.
